Lazzara Performance Hall

The 1,300 seat Lazzara Performance Hall is named for Gasper and Irene Lazzara, prominent civic leaders who donated $1.25 million to the performance hall's funding.

The fully-equipped theater is outfitted with state-of-the-art lighting and sound equipment and has excellent acoustics. It is the second largest stage in the North Florida community, and is the ideal venue for any type of event including concerts, lectures, meetings, theatrical productions and special events of all kinds.

Please view the technical specs to learn more about Lazzara Performance Hall's equipment and capabilities.

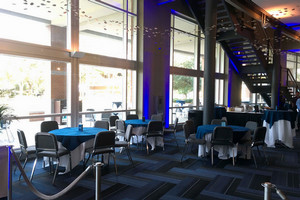

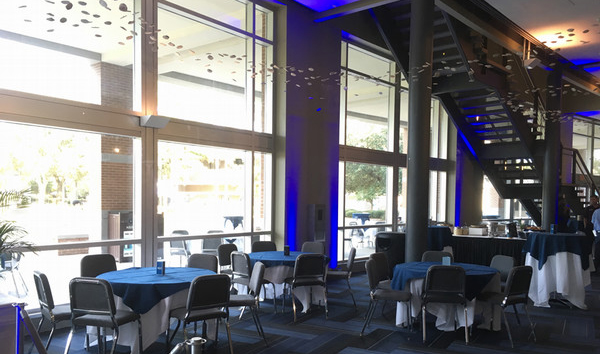

The adjoining lobby is home high ceilings, abundant natural light, two concession areas, contemporary furnishings, modern lighting accents and an intriguing sculpture installation entitled Aurora, by artist Tim Curtis. It's an ideal place for receptions, artist meet and greets, silent auctions and merchandise sales.

Seating Gallery
Dressing Rooms
Past Events
Seating Chart
Technical Specifications

Seating Gallery

View from Lazzara Performance Hall Seats

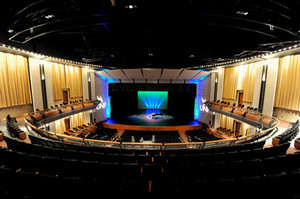

All seats View from Back Balcony — View of all seats from Back Balcony

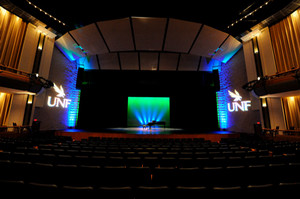

Center stage view — View from Center Seats

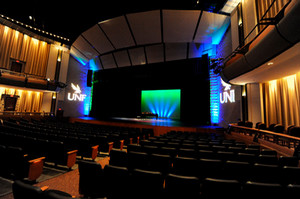

Mezzanine View from the Right side — View from Right Side

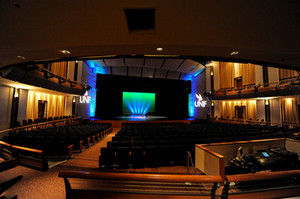

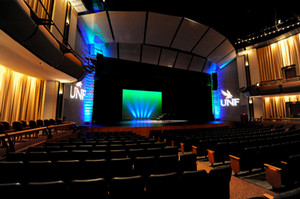

View from left side Mezzanine — View from Mezzanine Left

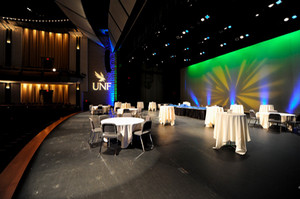

View of a Reception Setup on stage — Reception Setup View

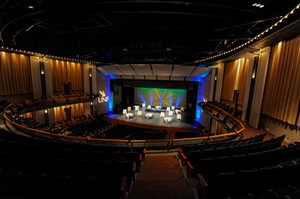

Recpetion set up on stage view from balcony — Reception view from balcony

Dressing Rooms

View of Lazzara Performance Hall Dressing Rooms

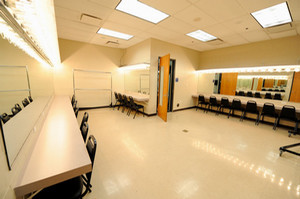

View of a large Dressing room — Dressing room - Large

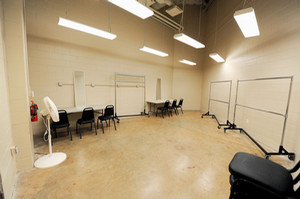

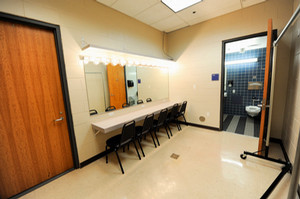

View of a medium Dressing room — Dressing room - Medium

Opposite view of a medium Dressing room — Dressing room - Medium

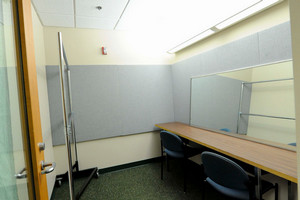

View of a small Dressing room — Dressing room - Small

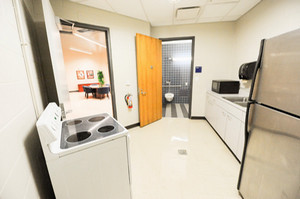

View of the Green Room Kitchen and Bathroom — Green Room Kitchen and Bathroom

Past Events

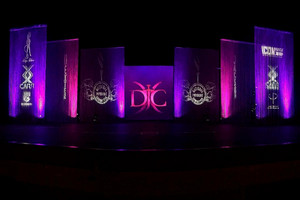

View of past events at the Lazzara Performance Hall
Dance performance with boom lighting	View from Center Seats	Florida Ballet Alice	View from Right Side

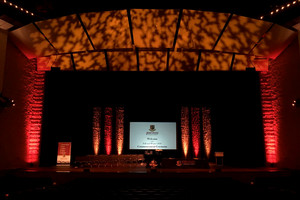

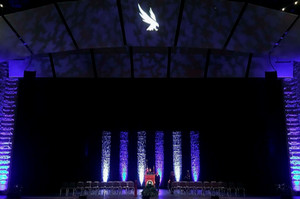

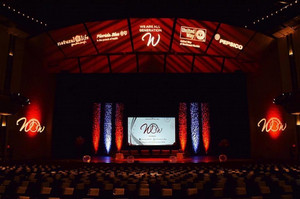

Generation W	Jersey College Graduation	President Inauguration	Reception view from balcony

Seating Chart

First Floor

Seating chart for Lazzara Performance Hall Orchestra and Mezzanine

First Floor seating capacity:

Orchestra section: 552 (314 center, 119 per side)
Mezzanine section: 215 (111 center, 52 per side)
Orchestra Pit 57: (These are not fixed seats and are installed as needed.)
Loge 24*: (12 per side)

First Floor Total: 848

Second Floor

Balcony seating chart for Lazzara Performance Hall

Second Floor Seating Capacity:

Balcony section: 490 (326 center, 82 per side)
Loge 28*: (14 per side)

Second Floor Total: 848

Total Seating Capacity for Lazzara Performance Hall: 1,360

Technical Specifications

Seating Capacity

Orchestra: 552 (314 center, 119 per side)
Mezzanine: 215 (111 center, 52 per side)
Orchestra Pit: 57 (These are not fixed seats and are installed as needed.)
Loge: 24* (12 per side)
First Floor Total: 848

Balcony: 490 (326 center, 82 per side)
Loge: 28* (14 per side)
Second Floor Total: 518

TOTAL SEATING: 1,360
Loading Dock

The loading dock is located behind the Robinson Theater (Building 14A), where building connects to the Fine Arts Center (Building 45). The dock is shared between Robinson Theater and Lazzara Performance Hall. There are two bays, and one side is equipped with a dock leveler. The dock measures 3 feet, 3 inches high with 2443 square feet of receiving room. Each loading door is 10 feet wide by 12 feet high.
The dock area is adjacent to a circular driveway that allows turning space for buses and large trucks. The dock is typically accessible via Lot 12, which is the parking lot for Osprey Village residence hall complex, which is located behind the Fine Arts Center. The dock is also accessible via the driveway that runs along the perimeter of the Fine Arts Center Parking Garage (Garage 44), which dead-ends behind the Fine Arts Center at the loading dock. If access is blocked due to construction or other activities, the technical director will notify clients in advance.
Shop

At the current time, the shop area is not fully outfitted. Please contact the tech director to discuss individual needs.
Bus & Truck Parking

Limited bus & truck parking is available with advance notice. Please contact tech director to arrange for parking.
Wardrobe

There is one room, specifically dedicated to wardrobe purposes (1812). This room is outfitted with one washer, one dryer, one jiffy steamer, 1 iron, and 1 ironing board. Also, there are many rolling racks available in all of the backstage areas.
Dressing Rooms

There are five dressing rooms available for use. There are 2 choral dressing rooms (1805 & 1808), each of which can accommodate 15-20 performers, 1 solo dressing room (1817), and 1 auxiliary dressing room (1819) which can accommodate 15-20 performers, all interconnected in the back hallway (1818). There is one other solo dressing room located off stage left (1317). All dressing rooms have private bath with one shower each, with the exception of 1819.
Other Rooms

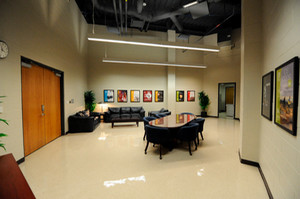

There is one green room (1802) with kitchenette attached (1804). The kitchenette has a full size refrigerator, microwave, and range. The green room is outfitted with a full set of furniture and a conference table.
Stage Specifications

STAGE FLOOR: Tongue and groove wood floor, painted black
GRID HEIGHT: 68’ 7”
STEEL HEIGHT: 78’ 8”
PROSCENIUM HEIGHT: 25’
PROSCENIUM WIDTH: 65’
GALLERY HEIGHTS:
Upper Load Gallery: 68’ 7”
Lower Load Gallery: 57’ 4”
Stage Left Pin rail: 34’ 7”
Stage Right Pin rail: 34’ 7”
STAGE DEPTH: 40’
STAGE WIDTH: 104’
Center to Stage Right Edge: 53’
Center to Stage Left Edge: 51’
APRON DEPTH: 4’ 11”
APRON WIDTH: 69’
PIT DEPTH: 12’
PIT WIDTH: 65’
PIT LEVELS: (in relation to stage floor)
Stage Level: 0’
House Level: 4’
Orchestra Level: 10’
Rigging Specifications

SINGLE PURCHASE, HAND OPERATED LINE SETS. OPERATED FROM STAGE FLOOR STAGE LEFT OR FROM STAGE LEFT GALLERY.
NUMBER OF AVAILABLE LINESETS: 51
GRID HEIGHT: 68’ 7”
TRAVEL DISTANCE: 62’
MAX WEIGHT PER ARBOR: 2000 lbs.
TOTAL AVAILABLE WEIGHT: 75,000 lbs
BATTEN LENGTH: 73’
2 MOTORIZED LADDER TAB PIPES: 4 ladders per pipe, 1 per side
Orchestra Clouds

There are 3 permanent motorized orchestra shell ceiling panels located at 8’ 5”, 18’ 6”, and 28’ 6” (measured upstage from plaster line).
Lineset Schedule

Stage opening is 45’ from wing to wing.
0'-0" Plaster Line
FC 0'-3" Fire Curtain
1 1'-5" Valance
2 2'-10" House Curtain
3 3'-6" Legs 1
4 4'-0"
5 4'-6" XXXXXXXXXX
6 5'-6" 1st Electric
7 6'-6" XXXXXXXXXX
8 7'-0"
9 7'-6"
10 8'-5" Orch. Shell #1 N/A
11 9'-6" Mirror Ball Seasonal
12 10'-6" Border 2
13 11'-0" Legs 2
14 11'-6"
15 12'-0"
16 12'-6" XXXXXXXXXX
17 13'-0 2nd Electric
18 13'-6" XXXXXXXXXX
19 14'-0"
20 14'-6"
21 15'-0"
22 15'-6"
23 16'-0"
24 16'-6" Projection Screen 11’H x 17’W
25 17'-0" Border 3
26 17'-6" Legs 3
27 18'-6" Orch. Shell #2 N/A
28 19'-6"
29 20'-6" Mid stage Traveler
30 21'-6" XXXXXXXXXX
31 22'-0" 3 Electric
32 22'-6" XXXXXXXXXX
33 23'-0"
34 23'-6"
35 24'-0"
36 24'-6" Border 4
37 25'-0" Leg 4
38 25'-6"
39 26'-6"
40 28'-6" Orch. Shell #3 N/A
41 29'-6" XXXXXXXXX
42 30'-6" 4 Electric
43 31'-0" XXXXXXXXX
44 31'-6"
45 32'-0" Border 5
46 33'-0" Leg 5
47 33'-6" Black Scrim 30’H x 72’W
48 34'-0" XXXXXXXXXX
49 35'-0" CYC Electric
50 35'-6" XXXXXXXXXX
51 36'-0"
52 36'-6"
53 37'-0" Black Back 35’H x 48’W
54 37'-6"
55 38'-0" Cyclorama 35’H x 72’W
40'-0" Back Wall
Soft Goods

1 Blue House Curtain 72’W x 45’H
1 Blue House Valance 72’W x 16’H
7 Black Velour Borders 72’W x 16’H
12 Black Velour Legs 12’W x 35’H
8 Black Velour Legs 8’W x 35’H
1 White Seamless Bounce 45’ 9”W x 28’H
1 White Seamless Cyc 35h x 72w
1 Black Sharks tooth Scrim 30h x 72w
1 Full Stage Traveler Black (split at center) 35h x 72w
Lighting System

Console:
ETC ION console
2 Universal Fader Wings 2x20
1 wireless Hand Held Focus Remote
ETC Expression 3 console
ETC 48-96 console 1 wireless Hand Held Focus Remote
Dimmers:
ETC Sensor
2.4K Dimmers 280
6K Dimmers 4
Power Distribution

There are (3) 400A, 3 Phase Company Switches located Upstage Right. And (3) 100A, Company Switches 1 down stage left 1 down stage right and one up stage right. These switches are outfitted with direct Cam lock connectors with 2 neutrals and ground and neutral reversed. No tails are necessary.
There is (1) 400A, 3 Phase Company Switch available for buses. This Company Switch is identical to the switches on stage.
Theater Dimensions

1st Catwalk
16’ from plaster line (above pit edge)
Lower rail—43’ above stage floor
Upper rail—46’ above stage floor

2nd Catwalk
22’6” from pit edge (curved as pit), center is 38’6” from plaster line
Lower rail—43’ above stage floor
Upper rail—46’ above stage floor

3rd Catwalk
49’ from pit edge (curved as pit), center is 65’ from plaster line
Lower rail—43’ above stage floor
Upper rail—46’ above stage floor
Spots sit in center of this cat

Balcony Rail
49’ from pit edge (curved as pit), center is 65’ from plaster line
Rail—15’ above stage floor
Audio
- Yamaha M7CL-48
- NEXO amp processing and line arrays with removeable ground-stacked subwoofers
- Rhenkus Heinz Monitor boxes with QSC power amps (citation needed)
- Up to 8 monitor mixes available on and backstage
- Clear-com party line communication system with beltpacks and headsets as needed
- SHURE ULXD wireless microphone system
- An extensive microphone inventory with various condenser and dynamic microphones
- High quality microphone stands
- Powered and unpowered hotspot monitors
- Small/medium portable full range sound system
- Listen Systems assistive listening devices (nomenclature?)
- iMac FOH playback computer with Qlab basic license and SHURE wireless workbench.
- Rackmount CD player for playback at FOH
- All necessary microphone and monitor cable for full system implementation
- Various adapters and audio problem solvers
Miscellaneous Rental Gear

Orchestra Equipment
75 Wenger Orchestra Chairs
70 Music Stands
30 Articulated Music Stand lamp
160 Blue Versa Seating Chairs

Tables
40 6’ Tables
7 5’ Round Tables
30 6’ Rounds
12 32” High Boys

Pianos
1 9’ Yamaha Concert Grand

Podiums
3 Non –Powered Podiums in an array of wood colors.

LED Lights
11 Chauvet COLORdash Batten- Quad 6
2 Chauvet COLORdash Par Hex 12IP
9 Divine RGB Pars

Projectors
2 Panasonic PT-EZ770ZU** 6500 lumens
Panasonic PT-DW5100** 5,000 lumens
EIKI EIP-HDT30 ** 8,000 lumens
